Our Investment

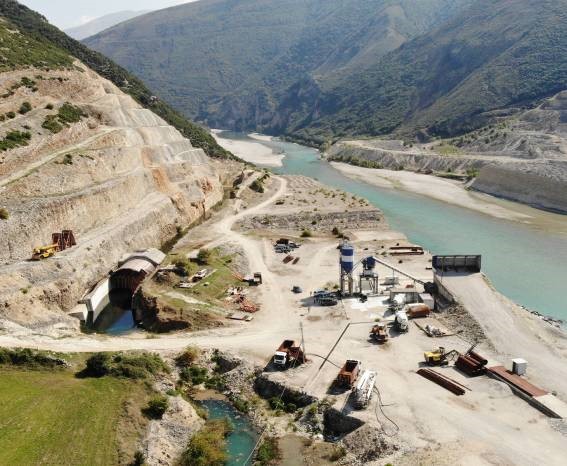

Kalivac Hydro power plant project has been planned to installed in the south part of Albania on River Vjosa. Kalivac Hydro power plant has installed capacity 111 MW and 366.62 GWh production per year. Vjosa river is the 3rd biggest river in Albania and average flow is 145 m3/s per year. The Project planned to be a Concrete Face Rockfill Dam with the height of 46 m and the crest length is 445 m. 2 pieces of Kaplan Turbines each capacity of 51 MW and Residual flow turbine is 9 MW foreseen to be installed. Active reservoir of the dam will be 385 million m3 and total area that will be underwater is expected to be 2000 ha.
Technical Data
Dam Type |
Concrete Faced Rockfilled Dam (CFRD) |
Spillway |
Radial Gate |
Gross Head |
42,5 m |
Maximum Water Level |
113 masl |
Minimum Water Level |
95 masl |
Mean Operation Level |
110 masl |
Tail Water Level |
67,5 masl |
Active Storage |
385 hm3 |
Annual Flow |
149 m3/s |
Design Flow |
316 m3/s |
Installed Capacity |
111 MW |
Energy Generation |
366,62 GWh |
